Grand Tour Proven

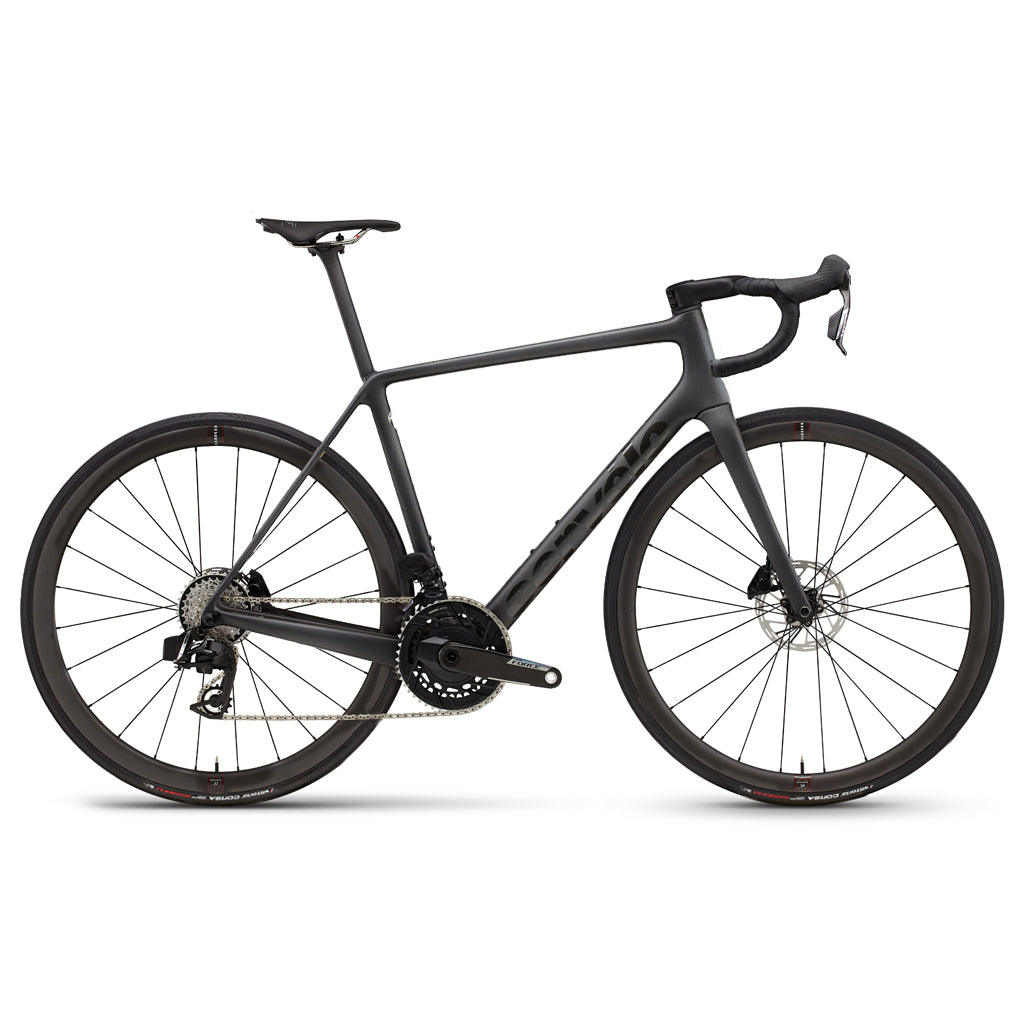

Cervélo R5 Force E1 AXS (Custom Build)
The Cervélo R5 features a SRAM Force AXS E1 12-speed wireless electronic drivetrain for precise shifting, paired with Reserve 34|37 carbon wheels to help you climb with ease.
If you have any questions or we don't have what you're looking for, please don’t hesitate to reach out to us and we'll get back to you within 24 hours.
Grand Tour Proven
Cervélo R5 Force E1 AXS (Custom Build)
Features
Specifications
| Fork | Cervélo All-Carbon, Tapered R5 Fork |
|---|---|
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
| Handlebar/Stem | Cervélo HB13 Carbon |
| Seatpost | Cervélo SP31 Carbon |
| Saddle | Specialized Power Comp 143mm |
| Shifter/Brake | SRAM Force AXS E1 |
| Brake Rotors | SRAM Paceline Centerlock |
| Derailleurs | SRAM Force AXS E1 |
| Cassette | SRAM Force E1, 10-33T, 12-Speed |
| Chain | SRAM Force E1 |
| Crankset | SRAM Force AXS E1, 170mm, 48/35T, DUB, with power meter |
| Bottom Bracket | SRAM DUB Ceramic, BBright |
| Front Wheel | Reserve 34TA, DT Swiss 370, 12x100mm, 24H, centerlock, tubeless compatible |
| Rear Wheel | Reserve 37TA, DT Swiss 370, 12x142mm, HG freehub 24H, centerlock, tubeless compatible |
| Front Thru Axle | Cervélo Aero Thru Axle Front, M12x - 1.5mm, 122mm length |
| Rear Thru Axle | Cervélo Aero Thru Axle Rear, M12x - 1.0mm, 169mm length |
| Tires | Vittoria Corsa N.EXT TLR G2.0 700x30c |
| Accessories | Cervelo Faceplate Front Computer/Accessory Mount, Cervelo Rear Accessory Mount |
*Specifications are subject to change without notice
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 363 | 371 | 380 | 389 | 398 | 407 |
| B | Stack | 497 | 522 | 547 | 572 | 597 | 622 |
| C | Head Tube Angle | 71° | 72° | 73° | 73° | 73° | 73° |
| D | Front Center | 574 | 576 | 578 | 594 | 611 | 628 |
| E | Bottom Bracket Drop | 74.5 | 74.5 | 72 | 72 | 69.5 | 69.5 |
| F | Wheelbase | 972 | 974 | 977 | 994 | 1011 | 1028 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 93 | 114 | 137 | 163 | 192 | 218 |
| I | Top Tube Length | 515 | 531 | 548 | 564 | 581 | 598 |
| J | Seat Tube Angle | 73° | 73° | 73° | 73° | 73° | 73° |
| K | Standover Height | 695 | 724 | 755 | 778 | 800 | 824 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 48 | 4'11" - 5'3" | 150 - 160cm |
| 51 | 5'3" - 5'5" | 160 - 168cm |
| 54 | 5'5" - 5'9" | 168 - 176cm |
| 56 | 5'9 - 6'½" | 176 - 184cm |
| 58 | 6'½" - 6'3" | 184 - 192cm |
| 61 | 6'3" - 6'5" | 192 - 197cm |
