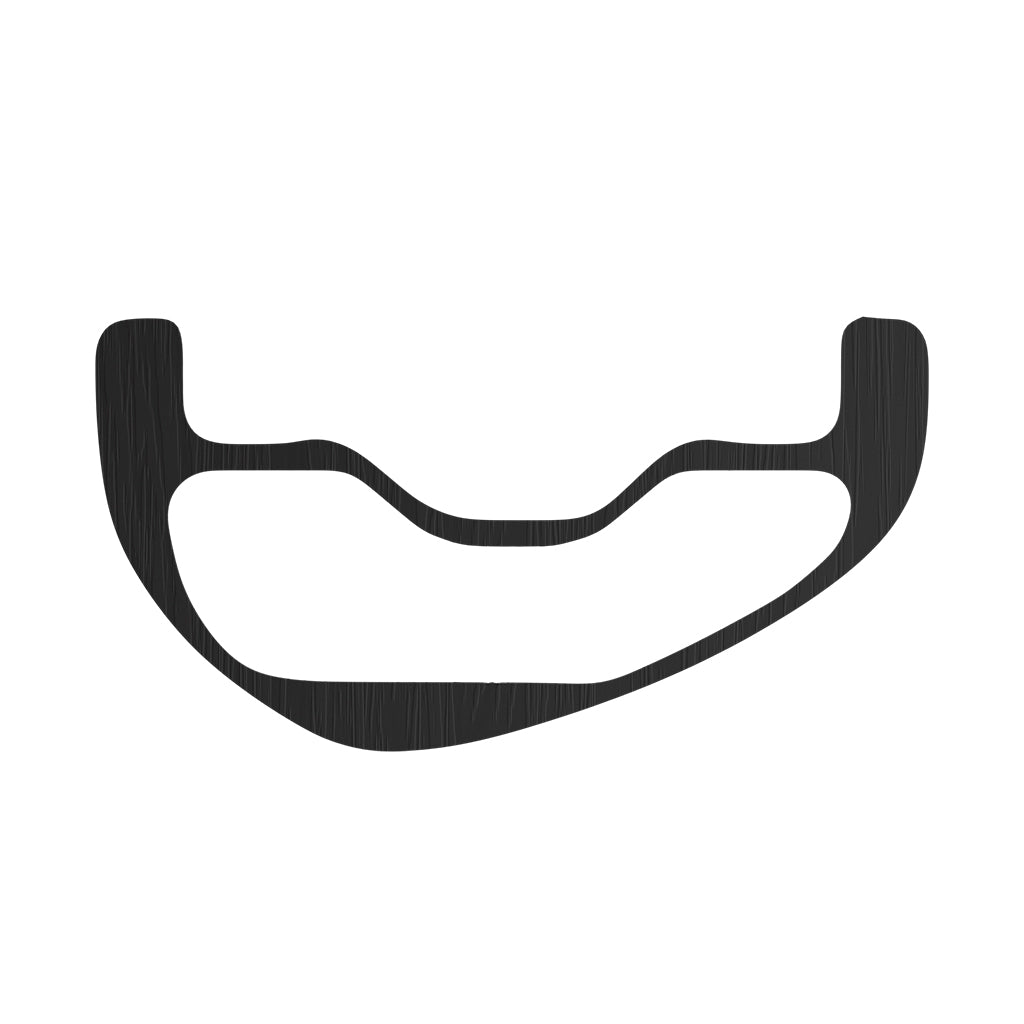

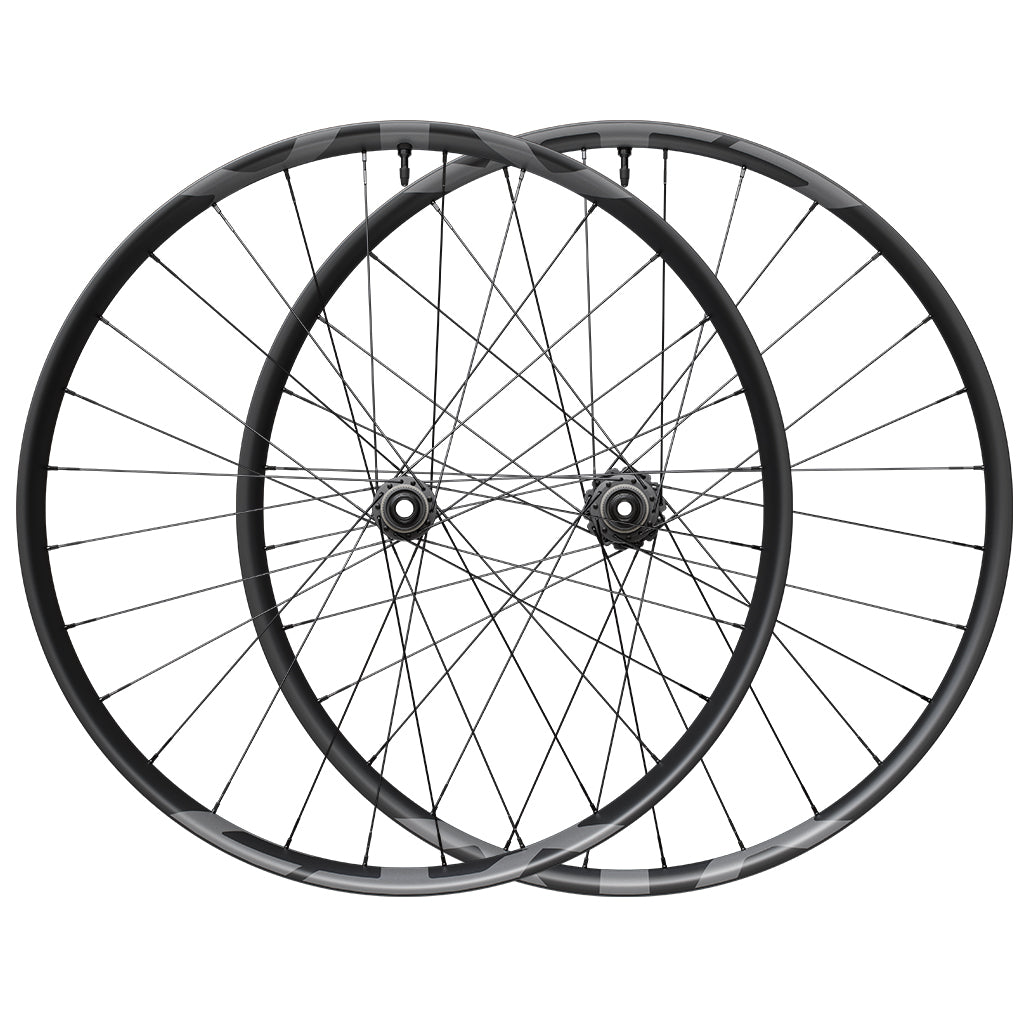

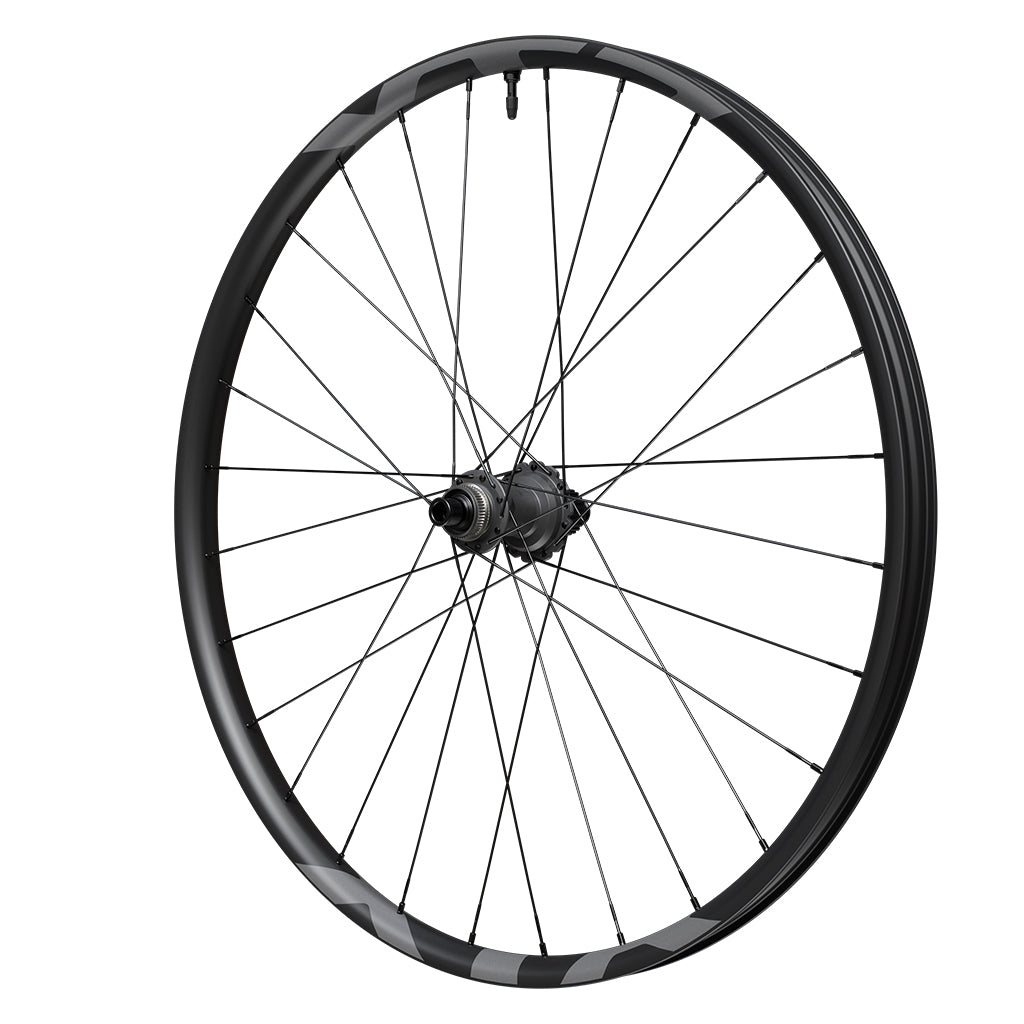

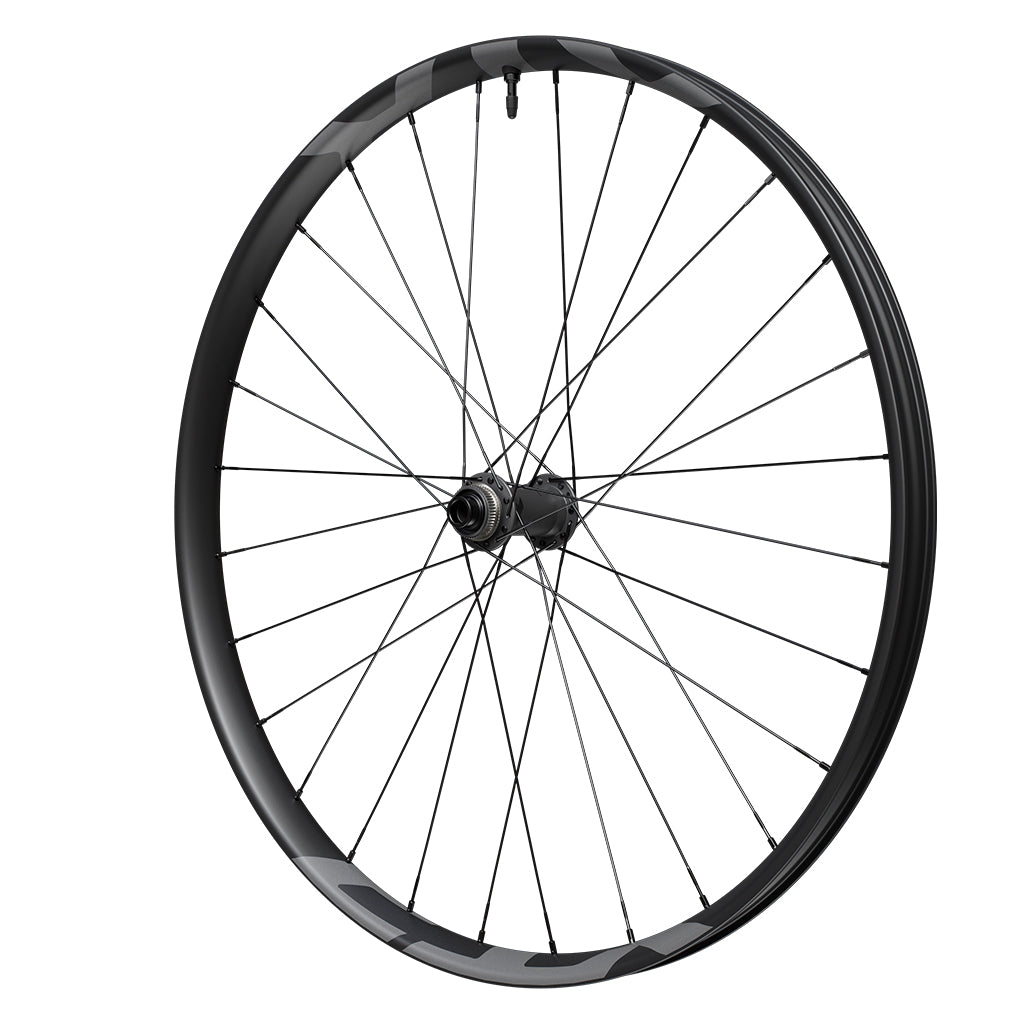

Built with the Enduro World Series racing and serviceability in mind, the WH-M9220 is Shimano’s beefiest full-carbon wheel offering yet. Equipped with a hookless 30 mm carbon rim, all-new XTR hubs and traditional 28H stainless steel J-Bend spokes, the WH-M9220 is built to survive and easy to repair if things go wrong.

FEATURES

• Quicker Engagement/Less Drag: A 3.5-degree engagement angle makes FH-M9210-B fast off the line, while smart seal design and smooth bearings mean less drag while coasting.

• Conventional Drilling/Boost Spacing: Available in conventional 29-inch, 148x12 rear hub boost spacing and traditional 28H drilling option.

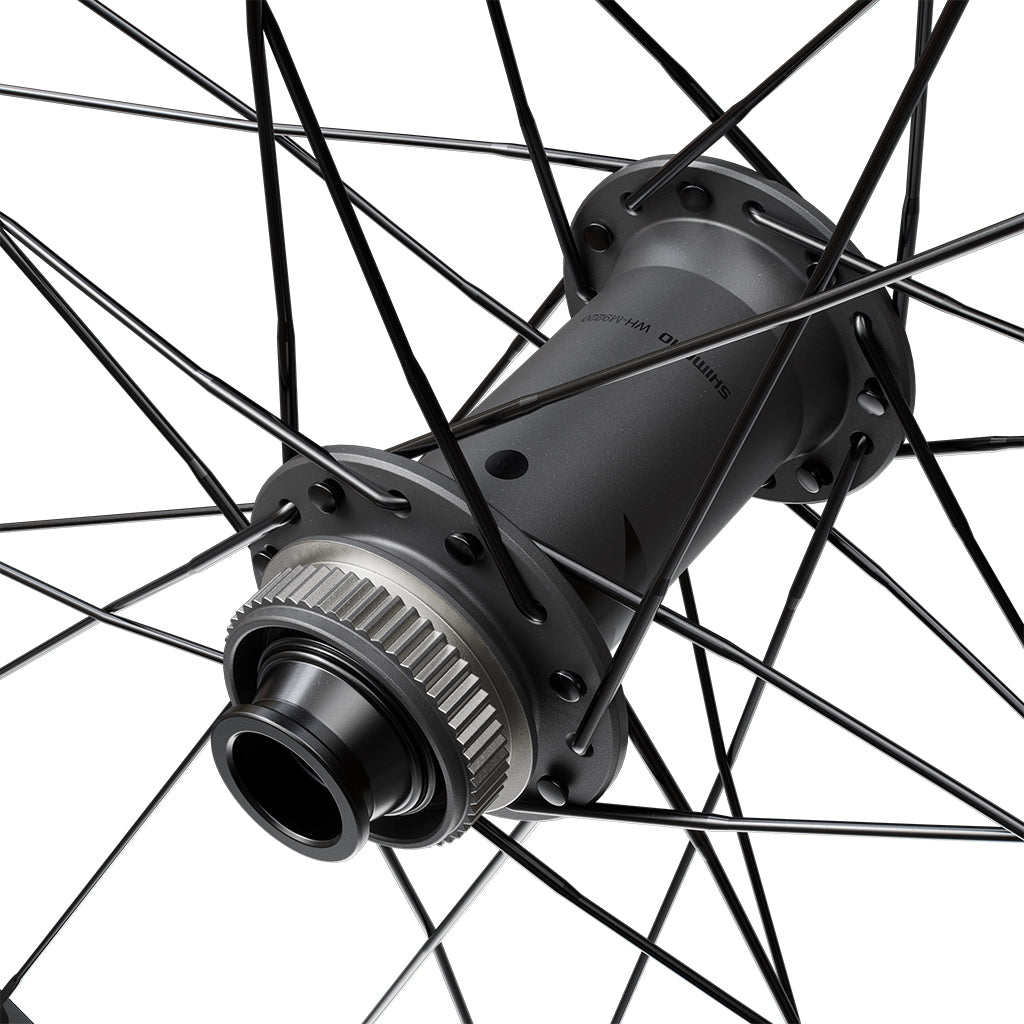

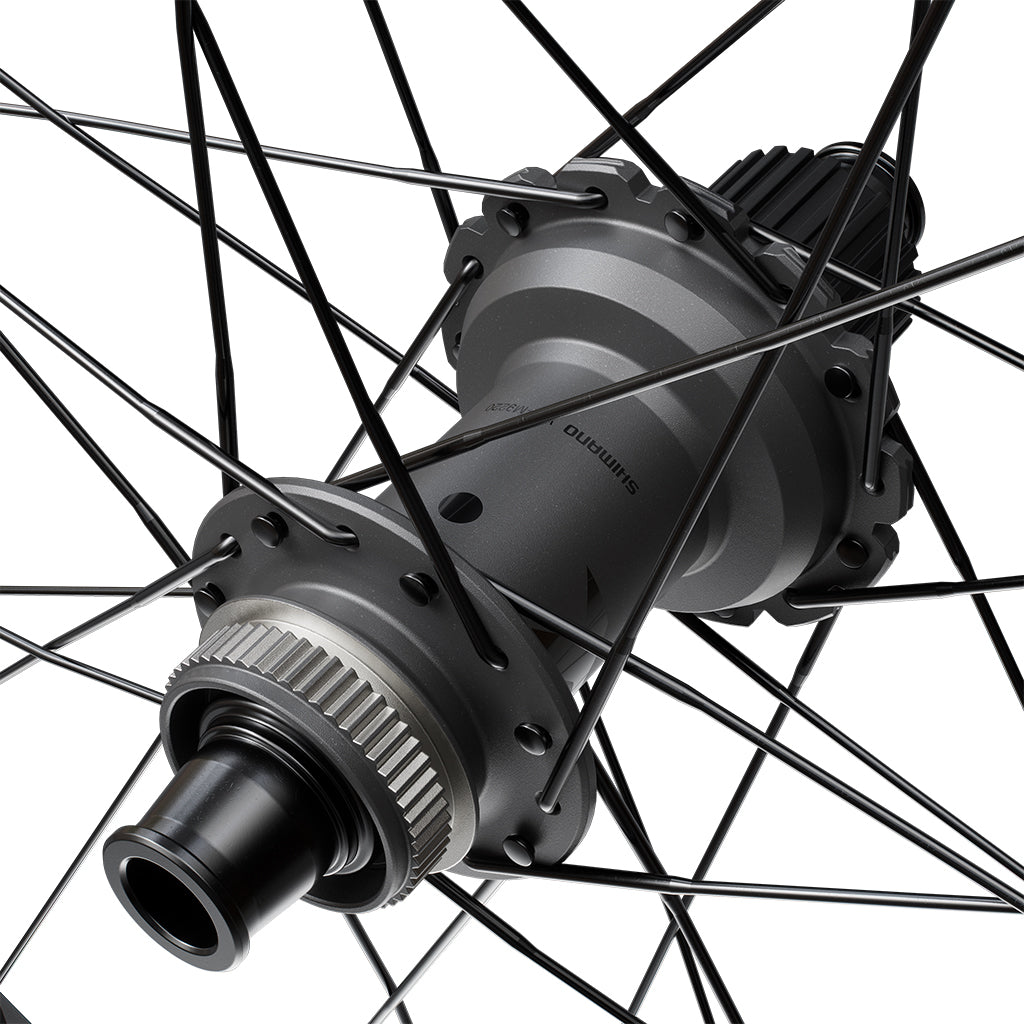

• Cartridge Bearings: XTR hubs are now available with easily serviceable stainless steel cartridge bearings.
• Rotation: Cartridge bearings, optimized seal designs and preload adjust keep the hub consistently rolling smoothly.

SPECIFICATIONS
Freehub Body: MICRO SPLINE
Rear Hub Engagement Type: Direct Engagement
Height: 19.7mm
Internal width: 30mm
External width: 38mm
Requires rim tape: (30-622)
Spoke Count: 28
Spoke Type: J-bend
Front OLD: 110mm
Rear OLD: 148mm

SKUs
Product Code: EWHM9220LFEREBD9X
Model No: WH-M9220-B-29
