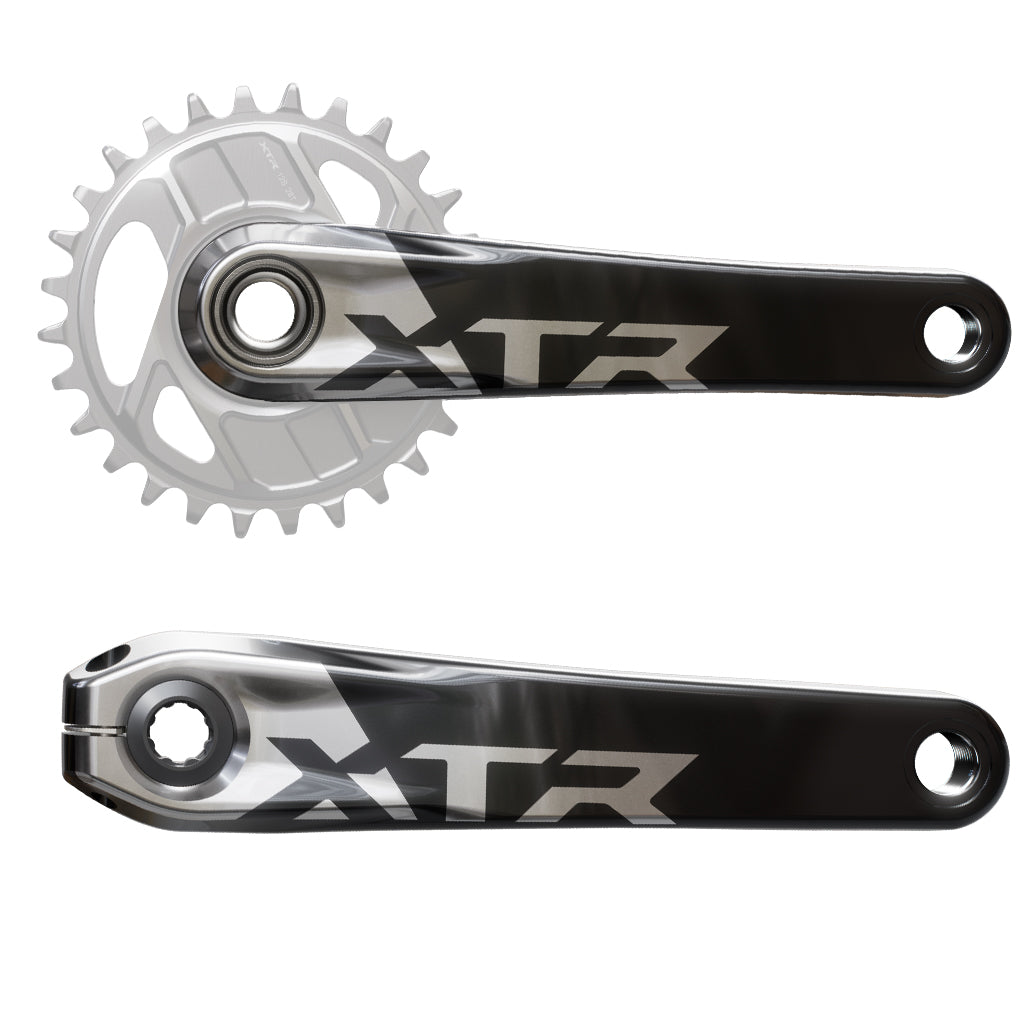

Forged for race confidence, the M9200 crankset represents evolution in Shimano’s iconic HOLLOWTECH II cold hammer hollow-forging process. Rigid enough for optimal power transfer, available in 160-175 mm lengths and compatible with SM-CR96 chainrings in all sizes, the FC-M9200 checks every box for a lightweight, reliable cross country crankset.

FEATURES

• Hollowtech 2 forged construction balances, weight, strength, and weight
• M9200 is built to be stiff and light for XC riding

• XC optimised Q factor

• Standard 24mm spindle

SPECIFICATIONS
Crank Arm Lengths: 165mm, 170mm, 175mm
Number of speeds: 12
Compatible Chain: HG 12-speed
Chain line: 55mm
O.L.D: 148mm
P.C.D.: Direct Mount
Q-factor: 170mm
Compatible Bottom Bracket: Outboard
Recommended Threaded Bottom Bracket: SM-BB93
Recommended Press-Fit Bottom Bracket: SM-BB94-41A
Thread Bottome Bracket Shell Width: 68/73mm

SKUs
Product Codes:
165mm: IFCM9200AAXX
170mm: IFCM9200ACXX
175mm: IFCM9200AEXX
Model No: FC-M9200
