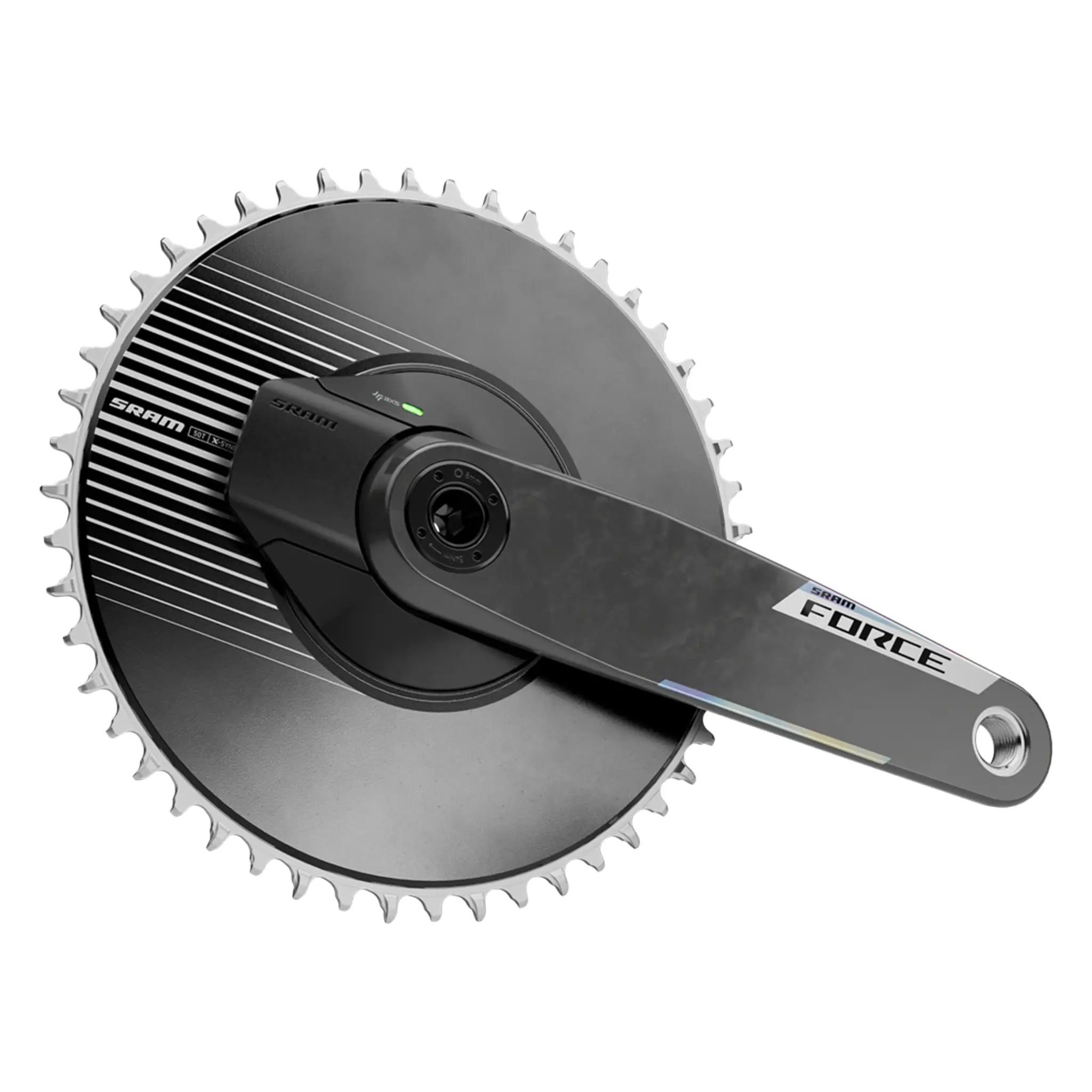

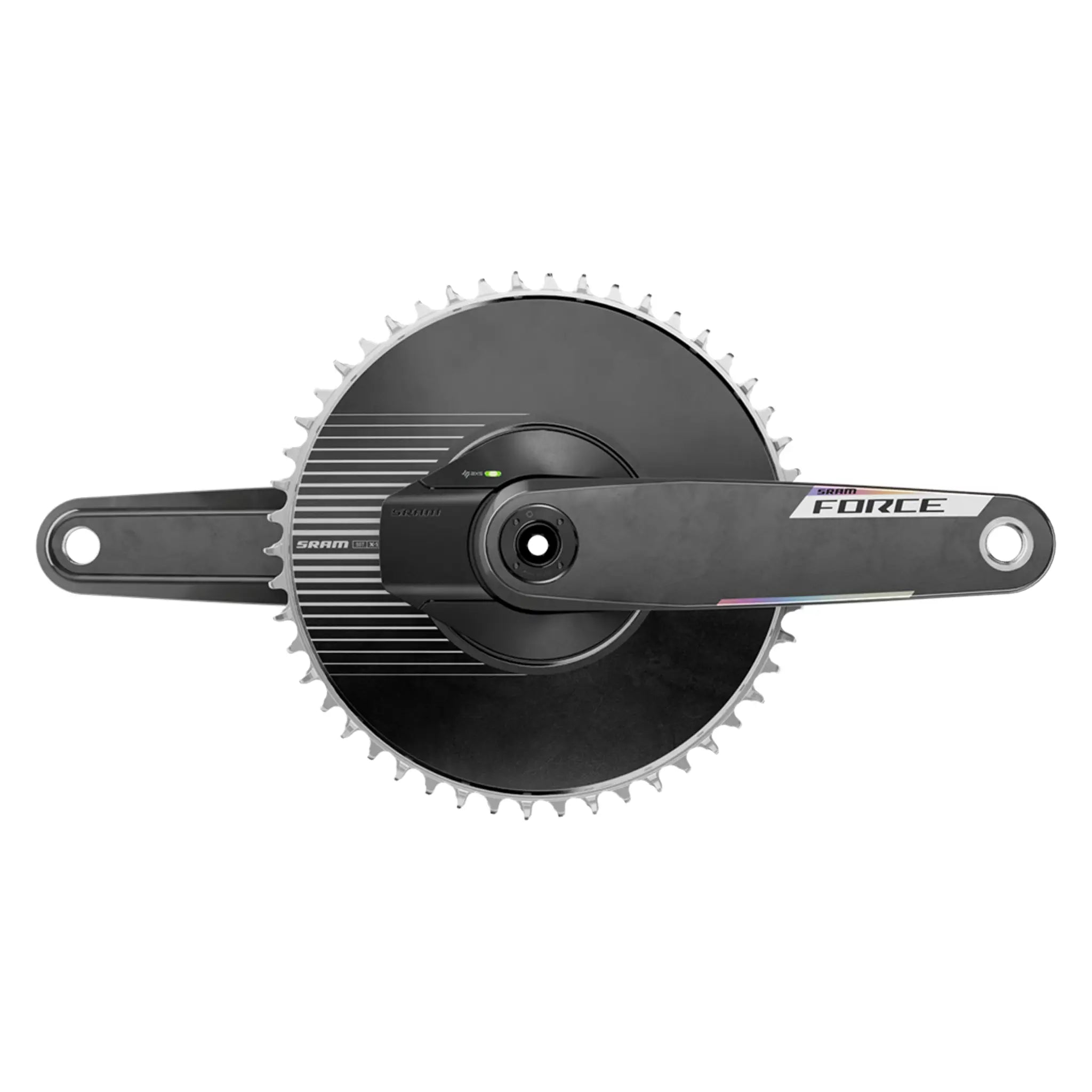

Measure your ride power data more accurately than ever with the Force 1 AXS power meter. It’s the lightest and stiffest integrated Force power meter we’ve developed yet. It’s accurate to +/-1.5%, unaffected by temperature changes and the direct mount X-SYNC chainring is aero and longer-lasting.

Features:

• Power meter is fully integrated into the chainring for lighter weight and greater accuracy

• Power readings are accurate within +/-1.5% and aren’t affected by climate conditions during a ride

• Measures right and left leg power balance

• DUB bottom bracket adds durability and simplicity

• Available in 160, 165, 170, 172.5, and 175mm crankarm lengths

• Use with road derailleurs, and XPLR derailleurs on bikes with chainstay lengths 414 mm and shorter

Specifications:

Speeds: 12, 13
BB Compatibility: All SRAM Road DUB BBs
Chainring Size: 50T
Crank Arm Length: 160mm, 165mm, 170mm, 172.5mm, 175mm
Chainring Offset: 6.5mm
Chainline: 45.0mm
BB Spindle Interface: DUB
Chainring Material: Aluminum
Bolt Circle Diameter (BCD): Direct Mount (DM)
Power Meter: Yes
Power Meter Type: Spider
Bottom Bracket Technology: DUB
Chainring Offset: 6.5mm
Cranksets Type: Road
Chain Technology: Eagle, Road Flattop D1/E1, T-Type
Drivetrain Configuration: 1x
Front Tooth Jump: 0
Chainring Mount Interface: 8-Bolt

SKUs
00.6118.741.000 (160mm)
00.6118.741.001 (165mm)
00.6118.741.003 (170mm)
00.6118.741.004 (172.5mm)
00.6118.741.005 (175mm)
Model ID: FC-FRC-1P-E1
